Crack Repair System
From hairline cracks (0.1 mm) to structural cracks (5+ mm) — our injection resins and repair compounds restore monolithic integrity to concrete and masonry structures.

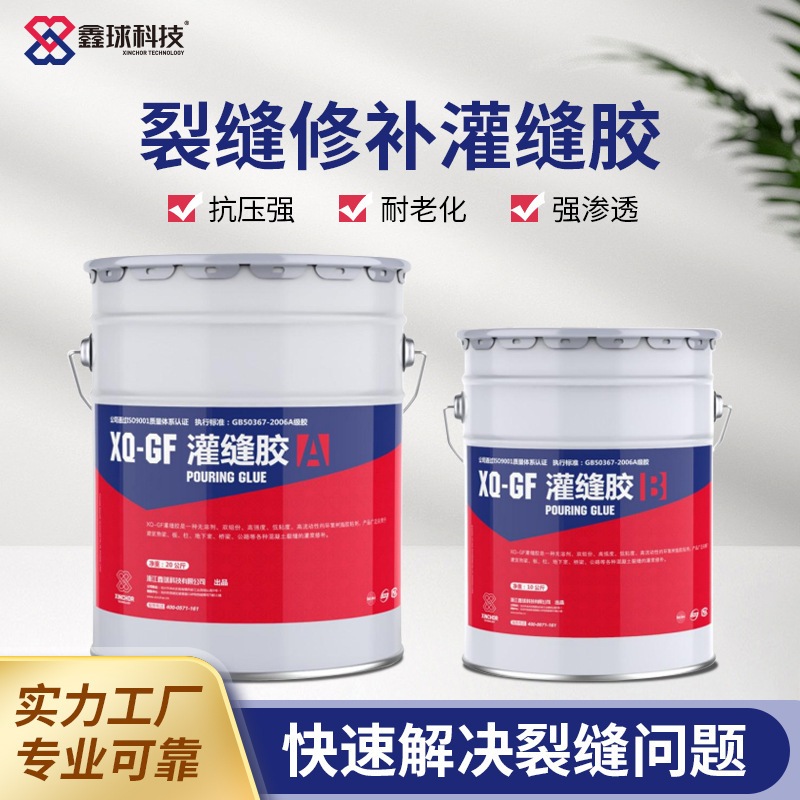

Crack Grouting Adhesive XQ-GF
Viscosity: 100–300 mPa·s
Crack Repair Adhesive XQ-XB
Viscosity: 1,000–3,000 mPa·s

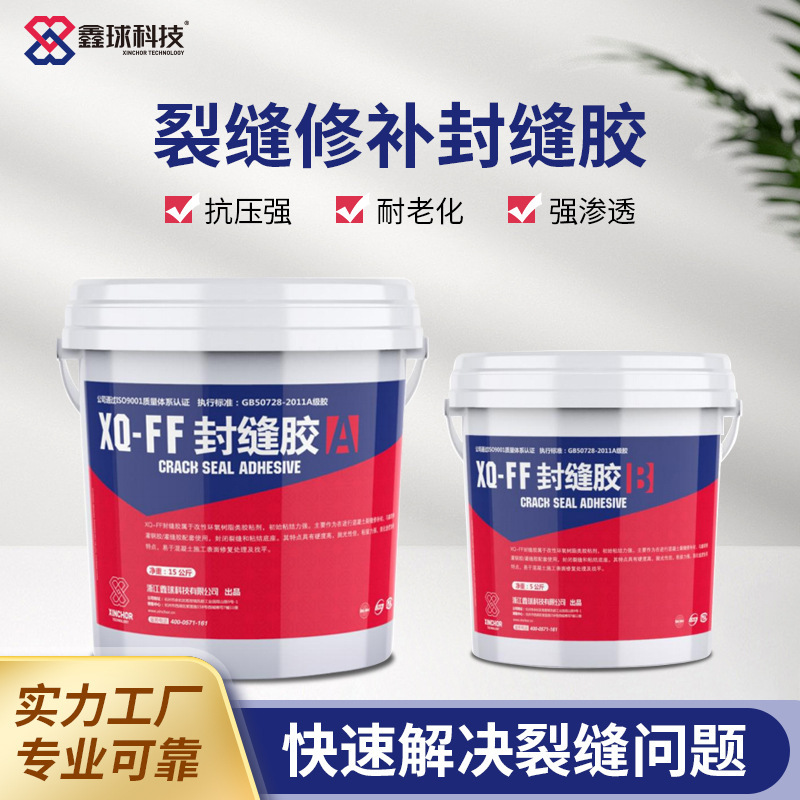

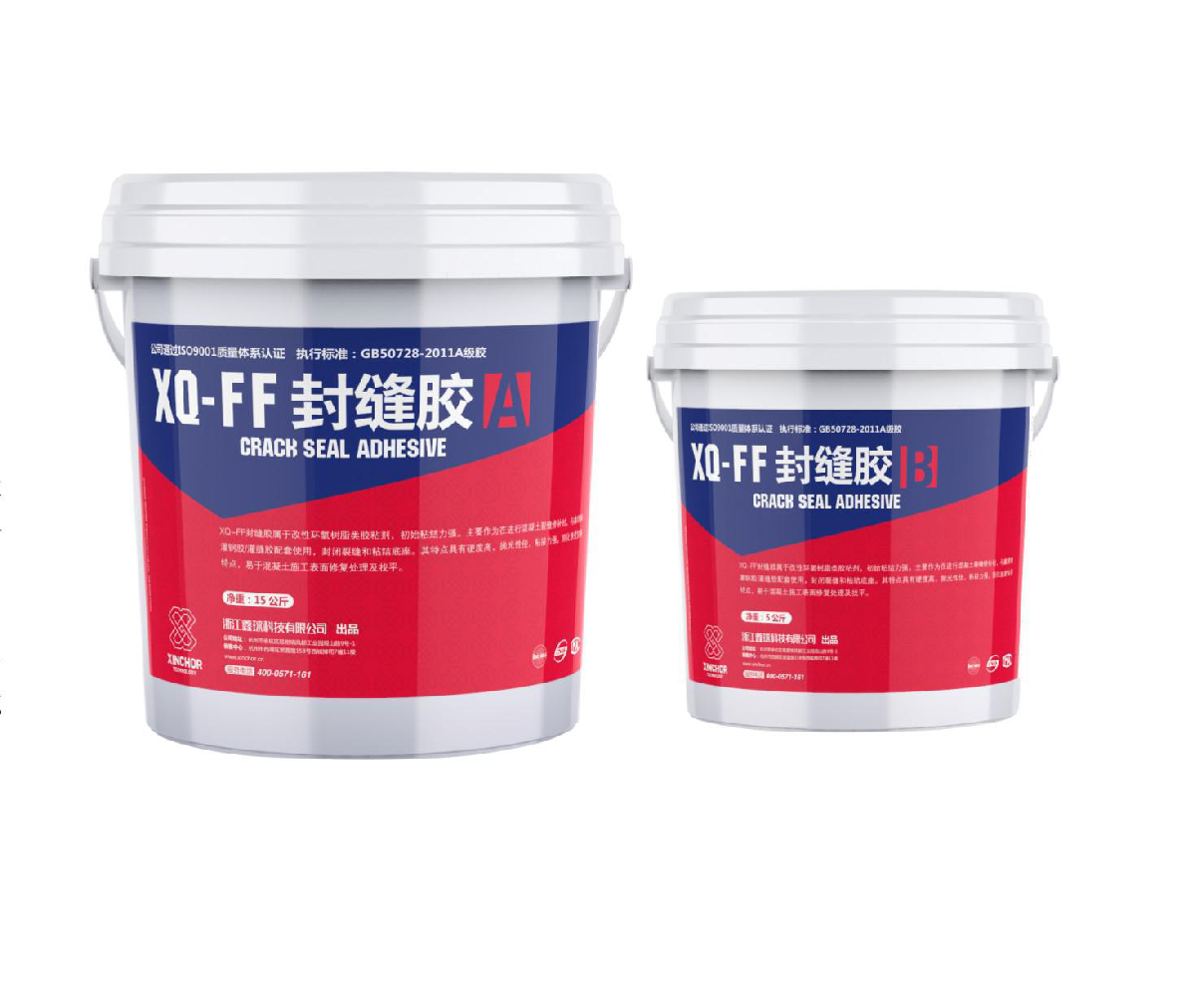

Crack Seal Adhesive XQ-FF
High adhesive strength and hardness
About XINCHOR Crack Repair System
Complete crack repair solutions including ultra-low viscosity injection resins for hairline cracks, medium-viscosity resins for wider cracks, and surface-seal pastes. All products are manufactured in our ISO 9001 certified facility in Hangzhou, China, backed by 26 national patents and 20+ years of production experience. We supply factory direct to contractors and distributors in 30+ countries.
Frequently Asked Questions
What is epoxy crack injection and when is it used?
Epoxy crack injection uses low-viscosity resin (100–3,000 mPa·s) pumped into concrete cracks to restore structural integrity. It is used for foundation cracks, bridge deck cracks, and tunnel lining repair. Our low-viscosity resin XQ-LF-L penetrates cracks as fine as 0.1 mm and cures to ≥40 MPa tensile strength — stronger than the original concrete.
Can resin injection fix foundation cracks?
Yes. Epoxy resin injection is the standard method for structural foundation crack repair. For waterproofing cracks, polyurethane injection is preferred because it remains flexible and accommodates minor movement. XINCHOR offers both epoxy (structural) and polyurethane (flexible, ≥300% elongation) injection systems.
What is the difference between low-viscosity and medium-viscosity crack injection resin?
Low-viscosity resin (100–300 mPa·s) is designed for hairline cracks 0.1–0.5 mm wide using gravity-feed or low-pressure injection. Medium-viscosity resin (1,000–3,000 mPa·s) handles wider cracks 0.5–5 mm using pressure injection. Both cure to structural-grade strength.
