Products/Carbon Fiber
Carbon Fiber Reinforcement System
Engineered carbon fiber reinforcement systems — from unidirectional fabrics to pultruded plates. Proven in 1,000+ wind turbine, bridge, and building projects.
Unidirectional Carbon Fiber Fabric — 200g/m²
200 g/m² areal weight
300g Carbon Fiber Fabric — Unidirectional 12K
300 g/m² areal weight
Bidirectional Carbon Fiber Fabric — 200g/m²
200 g/m² areal weight

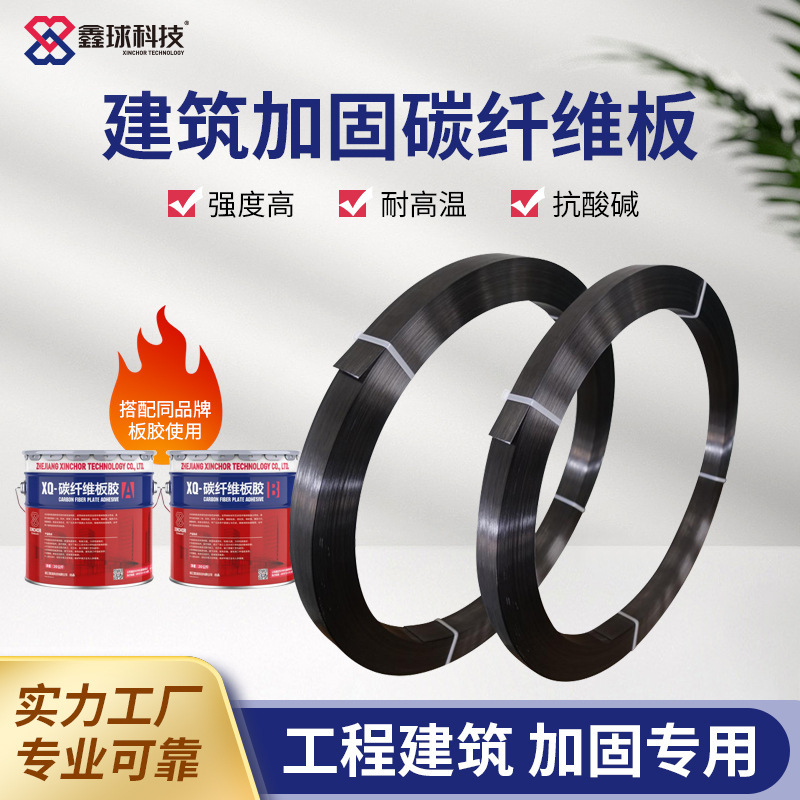

1.2mm Carbon Fiber Plate — CFRP Pultruded
Tensile strength ≥ 2,400 MPa

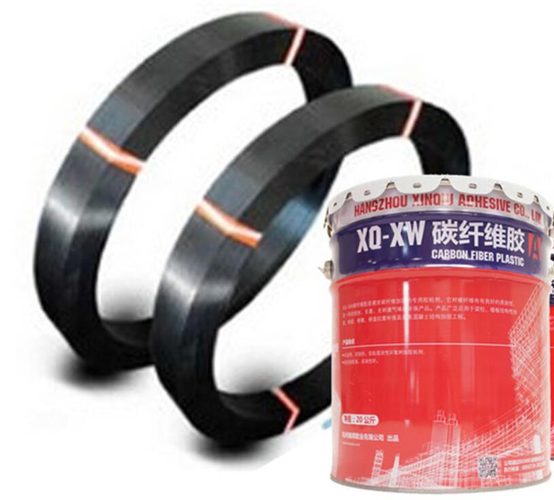

1.4mm Carbon Fiber Plate — CFRP Laminate
Tensile strength ≥ 2,400 MPa
High-Modulus CFRP Plate — 210 GPa
Elastic modulus ≥ 210 GPa
Unidirectional Carbon Fiber Fabric — 230g/m²
230 g/m² areal weight, 0.128 mm thickness
Unidirectional Carbon Fiber Fabric — 450g/m²
450 g/m² areal weight, 0.251 mm thickness
Unidirectional Carbon Fiber Fabric — 530g/m²
530 g/m² areal weight, 0.295 mm thickness
600g Carbon Fiber Fabric — Heavy-Weight Unidirectional
600 g/m² areal weight, 0.333 mm thickness
CFRP Wrap System — 300g/m²
Complete system: fabric + resin + primer

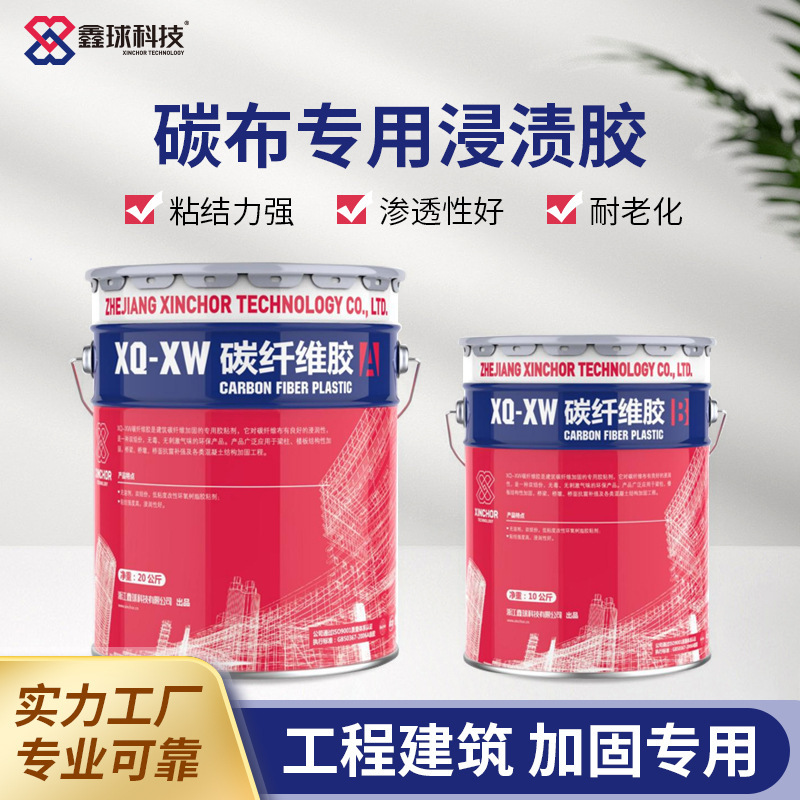

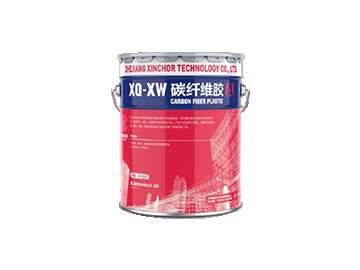

Carbon Fiber Impregnation Resin XQ-XW
Modified epoxy resin, two-component system

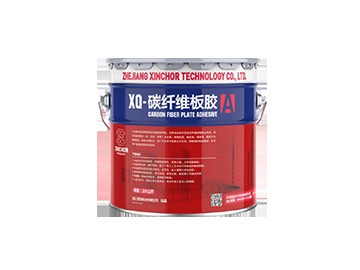

Carbon Fiber Plate Adhesive XQ
Designed for CFRP plate external bonding
About XINCHOR Carbon Fiber Reinforcement System
High-performance CFRP carbon fiber fabrics, plates, and wrapping systems for structural strengthening. Unidirectional and bidirectional options with tensile strength up to 4,900 MPa. All products are manufactured in our ISO 9001 certified facility in Hangzhou, China, backed by 26 national patents and 20+ years of production experience. We supply factory direct to contractors and distributors in 30+ countries.
Frequently Asked Questions
What does CFRP stand for?
CFRP stands for Carbon Fiber Reinforced Polymer. It is a composite material combining carbon fiber filaments (tensile strength ≥3,400 MPa) with an epoxy matrix. XINCHOR manufactures CFRP fabric (200–600 g/m²) and pultruded CFRP plates (1.2–2.0 mm) for structural strengthening of bridges, buildings, and industrial structures.
CFRP fabric vs CFRP plate: which should I choose?
CFRP fabric (wet lay-up system) offers excellent conformability for wrapping columns and irregular surfaces, with tensile strength ≥3,400 MPa and modulus ≥230 GPa. CFRP plates are rigid, factory-produced with ≥65% fiber volume, and install faster on flat surfaces like beam soffits. Choose fabric for shear/seismic work, plates for flexural strengthening.
How long does CFRP structural strengthening last?
When properly installed with compatible adhesive systems, CFRP strengthening has a design life of 50+ years. Carbon fiber does not corrode, rust, or degrade under normal conditions. The critical factor is the epoxy matrix — our resins are UV-resistant and rated for -40°C to +60°C service temperature.
