Products/Carbon Fiber/Unidirectional Carbon Fiber Fabric — 230g/m²
Carbon Fiber · CF-UNI-230Technical specificationsCF-UNI-230Rev 2026

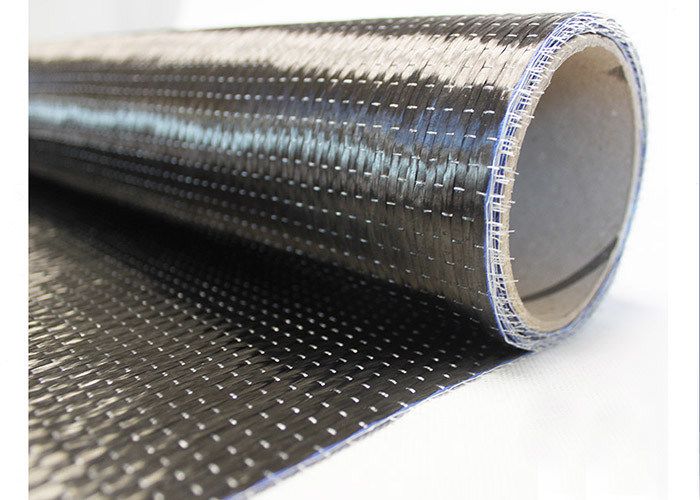

Unidirectional Carbon Fiber Fabric — 230g/m²
Lightweight unidirectional carbon fiber fabric at 230 g/m² areal weight. Optimized 0.128mm thickness for single-layer applications where minimal build-up is required.
Single-layer flexural strengtheningSlab soffit reinforcementThin-profile wrapping
| Areal Weight | 230 g/m² |
| Design Thickness | 0.128 mm |
| Tensile Strength | ≥ 3,400 MPa |
| Elastic Modulus | ≥ 230 GPa |
| Elongation | ≥ 1.6% |
| Density | 1.8 g/cc |
| Fiber Type | 12K Carbon Fiber |
| Weave | Unidirectional |
| Width | 100 / 150 / 200 / 300 / 500 mm |
Use with XINCHOR matched system components for full performance. TDS and MSDS available on request.
